Remove the EPB Fuse check wiring diagram in GTR to confirm which fuse to remove. PREPARE THE PARKING BRAKE FOR DETAILED INSPECTION CAUTION.

How To Perform A 4 Wheel Xf Sc Xfr Brake Job How To Jaguar Forums Jaguar Enthusiasts Forum

Release the parking brake by using the EPB switch.

Jaguar xe parking brake calibration. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features Press Copyright Contact us Creators. If a fault in the system is detected Park Brake Fault or Cannot Apply Park Brake. I replace the parking brake motor and reset the system and it still shows park brake fault.

Published by Technical Communications Jaguar Cars Limited Publication Part No. 7 Release the parking brake. 4 jack up rear of car.

Turned car off and restarted message still displayed. The Electronic Park Brake EPB is an electrically opera. XF 3L Diesel EngineYear.

Had an alert come up on Friday - Park brake needs calibration press foot brake and set park brake to recalibrate - or something to that effect. Watch this Jaguar informational video to learn how to operate and monitor the Electronic Park Brake. See electric parking brake epb red.

The dash board reads. 6 Apply the parking brake by using the EPB switch. System into Calibration Mode by doing a battery disconnectreconnect see Global Technical Reference GTR Workshop Manual section.

Lightly press the footbrake pedal. 5 Lightly press the foot brake. Then with ignition ON and the vehicle brakes at room temperature lightly press the brake pedal and apply the parking brake.

Confirm that the message NOT CALIBRATED or APPLY FOOT AND PARK BRAKE is displayed on the instrument cluster message center indicating that the parking brake is in calibration mode. After carrying out any work on the parking brake or rear brake calipers and discs the parking brake requires calibration. I have a 2005 Jaguar S type with a parking brake.

Joined Jun 18 2012. Brake light should be off now. 3 loosen wheel bolts.

Should a customer express concern regarding the above refer to the calibration procedure detailed in this bulletin. JLR 16 04 21_1E BY APPOINTMENT TO HER MAJESTY QUEEN ELIZABETH II MANUFACTURERS OF DAIMLER AND JAGUAR CARS JAGUAR CARS LIMITED COVENTRY BY APPOINTMENT TO. Confirm that the brake warning lamp is no longer illuminated on the Instrument Cluster and that the NOT.

Apply the parking brake by using the EPB switch. 1Carry out a 30-second power reset on the EPB Module. 2011Special function for parking brake release function.

Research compare and save listings or contact sellers directly from 1368 XE models in Grand Forks. Discussion Starter 1 Oct 18 2012. Parking brake reset on Jag XF PARKING BRAKE CALIBRATION NOTE.

8 Release the foot brake. Release the parking brake. I replaced the motor early last week and these codes are what is in the system from pulling the car in and out of the shop for a few days.

My key - Answered by a verified Jaguar Mechanic. Apply the parking brake by using the EPB switch. 2 with ignition on car off turned off EPB elect parking brake by depressing switch on console and pressing brake foot pedal.

This condition can result if the electronic park brake EPB system is not re-calibrated after the removal of the rear brake calipers to replace the brake pads. For those who want to change the rear pads Jaguar recommend that the EPB hand brake is calibrated as detailed below. Jaguar IDS DVD 111 or later and Midtronics PSC-550 Vehicle Power Supply must be connected to the vehicle battery during diagnosis.

This is taken from Topix and is an update that applies to ALL XFs and supersedes TSB JTB002082010 dated 31 August 2010. Hi Richard Just got back in the shop after a long weekend. This video illustrates the removal 1 of 2 parking brakes on an early XJ saloon XJ-S with in board brakes.

This indicates the the parking brake is in calibration mode. Switch the ignition off. Instrument Cluster message center.

Try to rotate wheel if it will not move repeat 2 making sure EPB is off. Park brake recalibration. 206-05 - PARKING BRAKE AND ACTUATION.

Now showing codes of C1094 C1782 and C1803. I stopped pressed foot brake and set park brake - no noise to suggest park brake was coming on and message remained. This indicates that the parking brake is in calibration mode.

Parking brake pad wear or the brakes binding. Lightly press the footbrake pedal. See Parking Brake Calibration procedure.

Park brake requires calibration apply foot and park brake. Install the Midtronics PSC-550 Vehicle Power Supply to the vehicle. We use cookies to give you the best possible experience on our website.

The warning lamp in the Instrument panel will remain on for a short time if the EPB is applied when the ignition system is reverted to Convenience mode. 4 Confirm that the message NOT CALIBRATED or APPLY FOOT AND PARK BRAKE is displayed on the instrument cluster message centre.

Parking Brake Recalibration Jaguar Xe Forums

2018 Jaguar Xj Xjr575 4dr Rear Wheel Drive Sedan Pictures

Jaguar Xf Parking Brake

Jaguar Xf Parking Brake

Parking Brake Fault Jaguar Forums Jaguar Enthusiasts Forum

2004 Xjr Parking Brake Caliper Brembo Jaguar Forums Jaguar Enthusiasts Forum

Parking Brake Fault Cannot Apply Parking Brake C1799 C1802 Jaguar Forums Jaguar Enthusiasts Forum

Jaguar Xf Parking Brake

Jaguar Owner Information

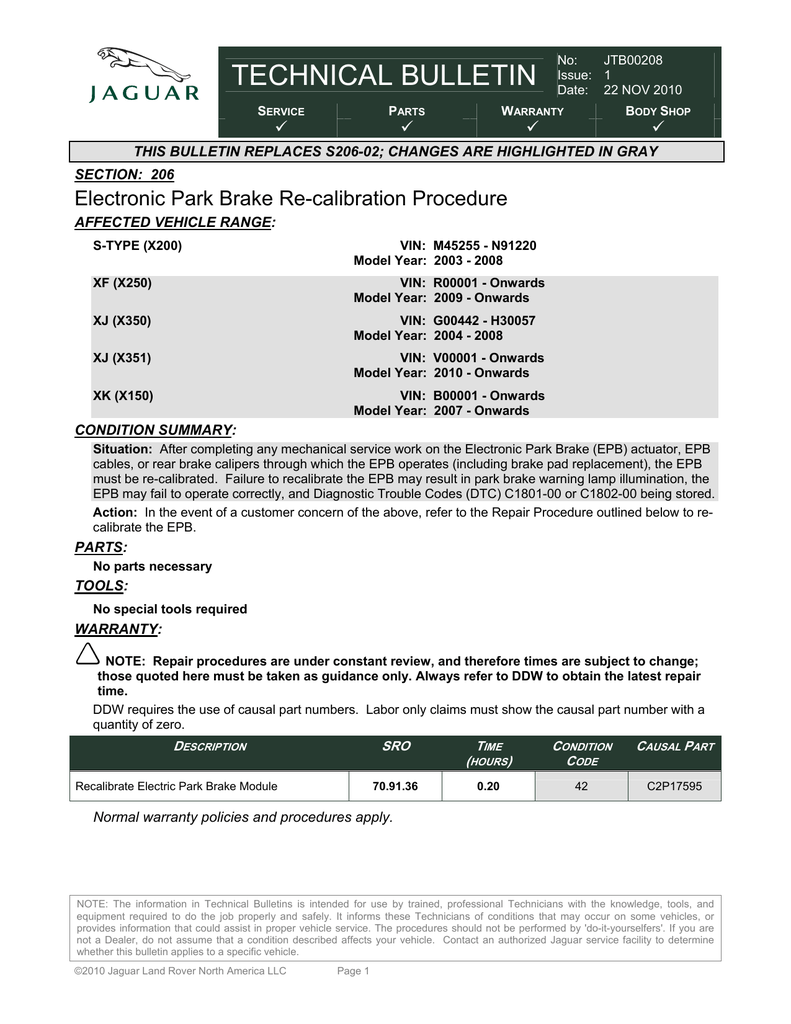

Electronic Park Brake Re Calibration Procedure Manualzz
